Replacing Rear Backrest

  1. Remove padding for rear backrest.
  2. Remove headrest guide -1-  .

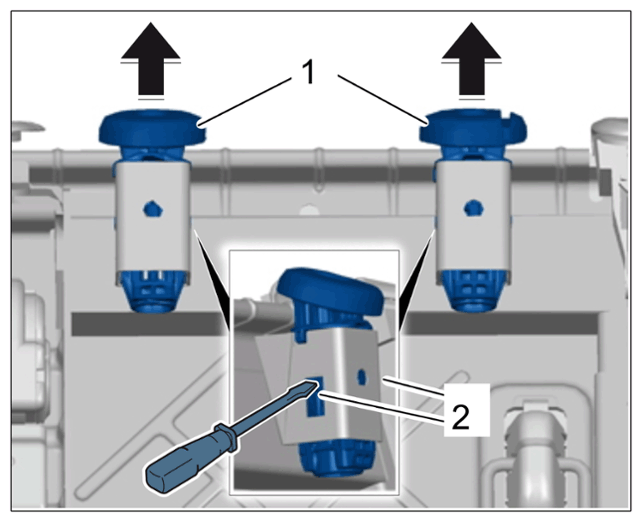

    G15161607Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest guide

    1. 2.1  Press in clips -2-  on the left and right and pull headrest guide up and out -Arrow-  .
  3. Remove covers for lashing points -1-  .

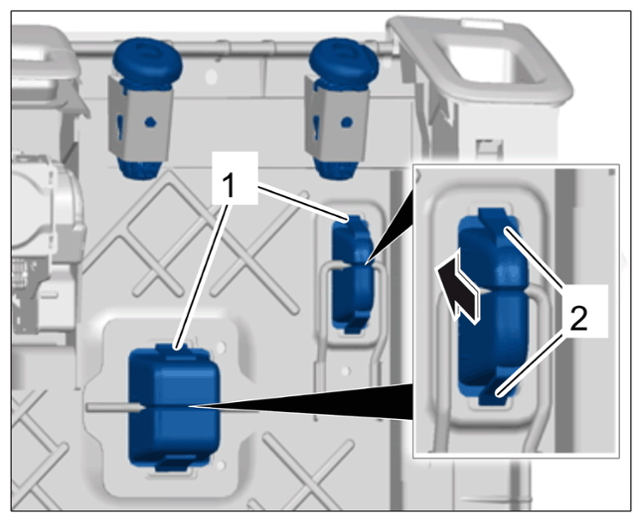

    G15161608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers for lashing points

    1. 3.1  Carefully press in clips -2-  for the covers and remove cover to the rear -Arrow-  .
  4. Remove lock for rear backrest.
  5. Remove three-point belt for middle seat (only necessary for left rear backrest).
  6. Replace rear backrest.
  7. Install three-point belt for middle seat (only necessary for left rear backrest).
  8. Install lock for rear backrest.
  9. Clip in and secure covers for latching points.
  10. Install headrest guide.
  11. Install padding for rear backrest.
