Installing Rear Right Backrest

Information

• The illustrations show the other side as an example.
• The removal and installation procedure for this side is practically identical.

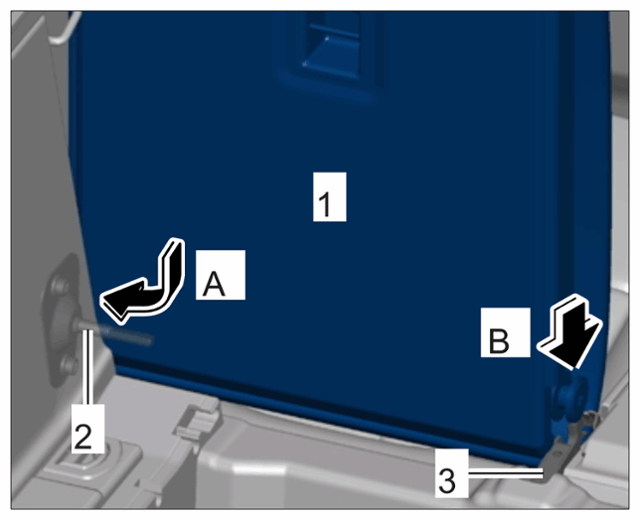

1. Guide rear right backrest -1-  into the mount on the body side -2- (-arrow A-)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear backrest

2. Only for vehicles with heated seats:  Connect electric plug connection between the rear seat and backrest.
3. Guide rear right backrest -1-  into the centre mount -3- (-arrow B-)  .

   Information

   Always replace the fastening screws on the seat assembly after customer service and reworking.

   Micro-self-locking or self-tapping screws must not be modified, greased or loosened and then screwed in again.

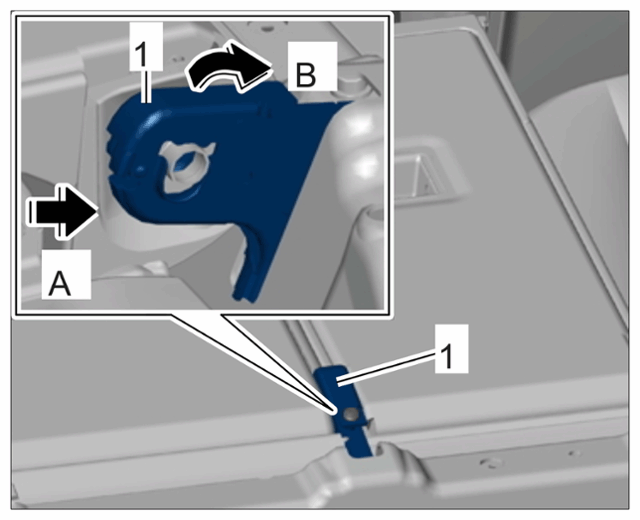

4. Install bearing brackets -1- (-Arrows-)  and secure them with a new  screw > Tightening - torque 12 Nm (9 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bearing bracket
