Removing Motor For Air Cushion

  1. Unscrew two fastening screws from backrest air cushion.
  2. Release fixing clip -2-  for the motor -1-  .

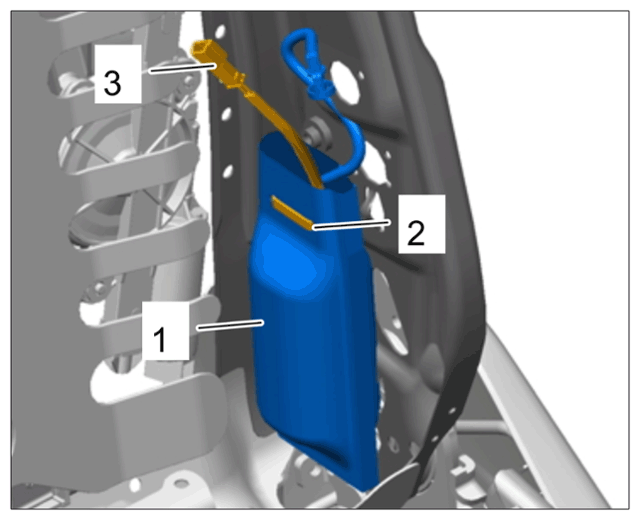

    G15161591Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Motor for air cushion

  3. Disconnect electric plug connection -3-  .
  4. Release pressure line (blue) -3-  from the control valve and pull it off.

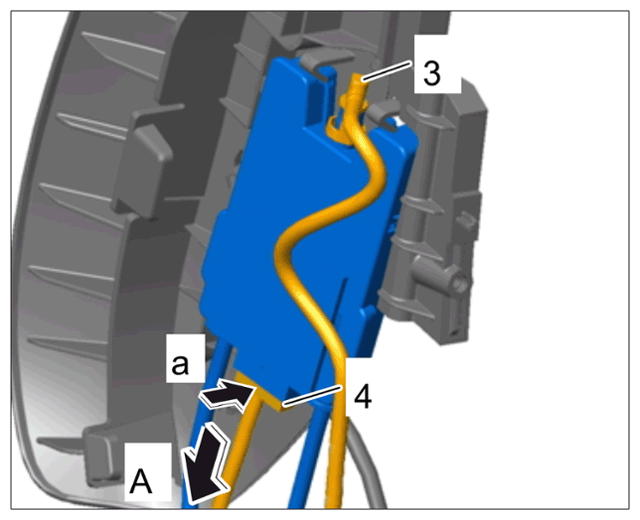

    G15161592Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure line and connector
