Installing Motor For Air Cushion

  1. Clip in fixing clip -2-  for the motor -1-  .

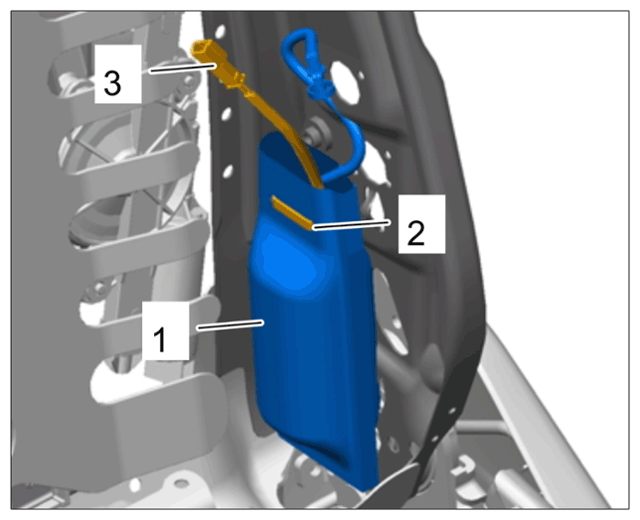

    G15161593Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Motor for air cushion

  2. Plug in electric plug connection -3-  .
  3. Connect pressure line (blue) -3-  to the control valve.

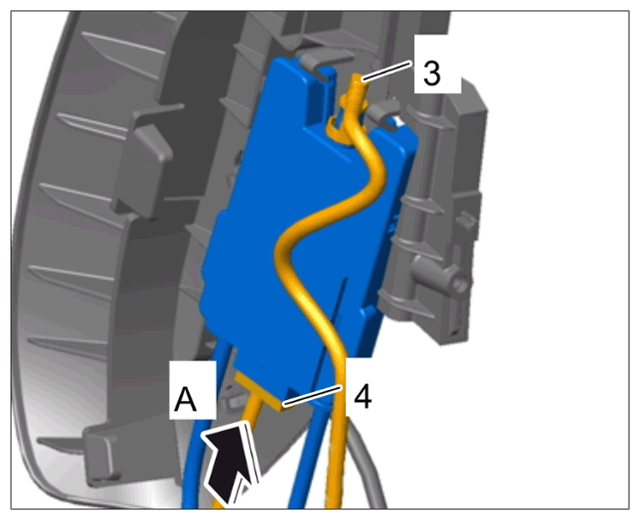

    G15161594Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure line and connector

  4. Screw in two fastening screws for the backrest air cushion.
