Removing Control Valve For Air Cushion

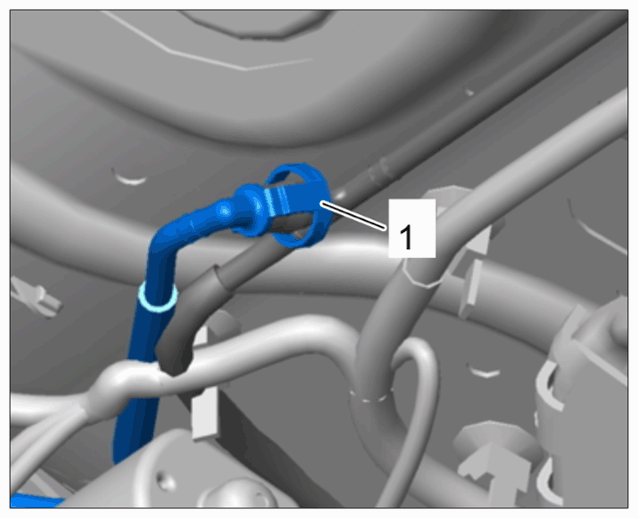

  1. Release and pull off the pressure line (red) -1-  under the seat.
    G15161582Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure line under seat

  2. Pull the pressure line (red) through betwee n the backrest frame and seat.

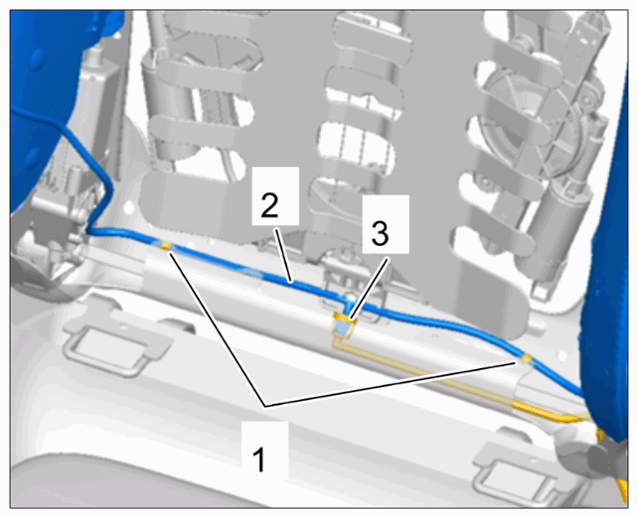

  3. Release control valve pressure line (green) -3-  from the air cushion pressure line (green) -2-  and pull it off. Do not loosen tie-wraps -1-  .
    G15161583Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure line for air cushion

  4. Unscrew two fastening screws from the backrest air cushion.

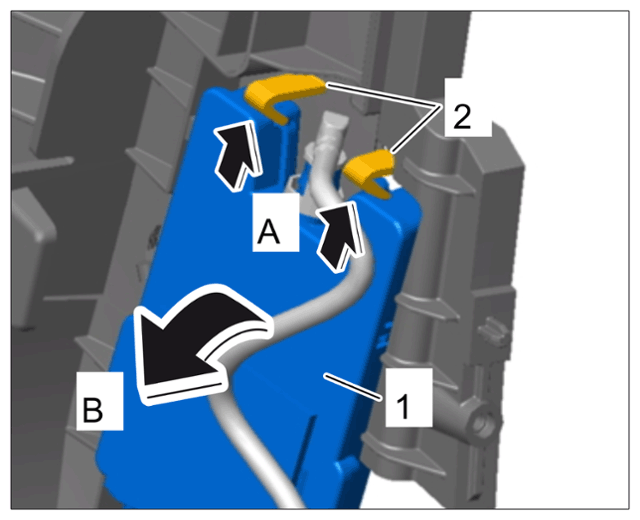

  5. Release locking mechanisms -2-  on the control valve -1- (-A-)  and remove control valve -B-  .
    G15161584Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control valve

  6. Release pressure line (blue) -3-  from the control valve and pull it off.
    G15161585Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure line and connector

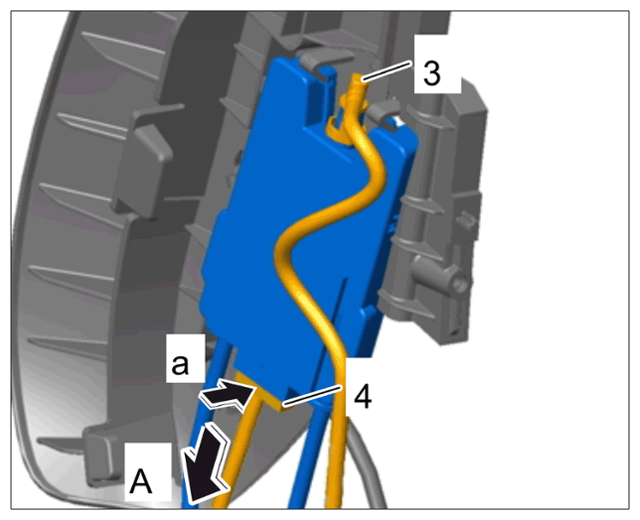

  7. Release electric plug connection -4- (-a-)  and disconnect it -A-  .
