Removing Lumbar Support: Notes

  1. Release and disconnect electric plug connection for lumbar support adjustment motor -1-  and lumbar curvature motor -2- (-a-)  .
    G15161553Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connectors for motors

  2. Drill out blind rivets -3-  using a suitable drill bit.

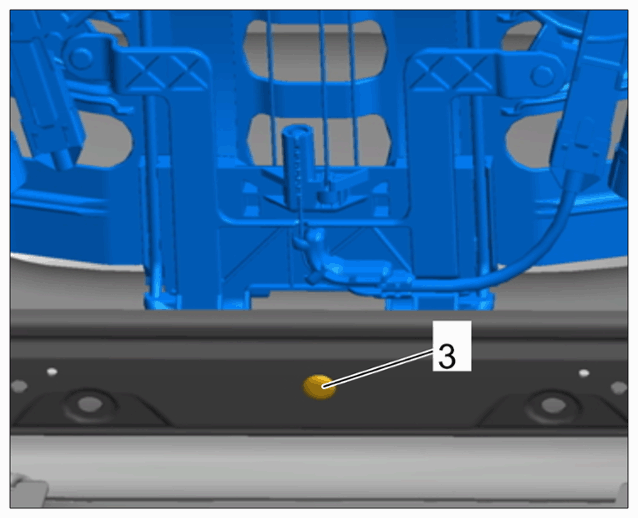

    G15161554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Blind rivets

  3. Fold the lumbar support up -arrow A-  and press the retaining bars -4-  at the left and right together.

    Disengage retaining bars -4-  from the backrest frame -arrow B-  .

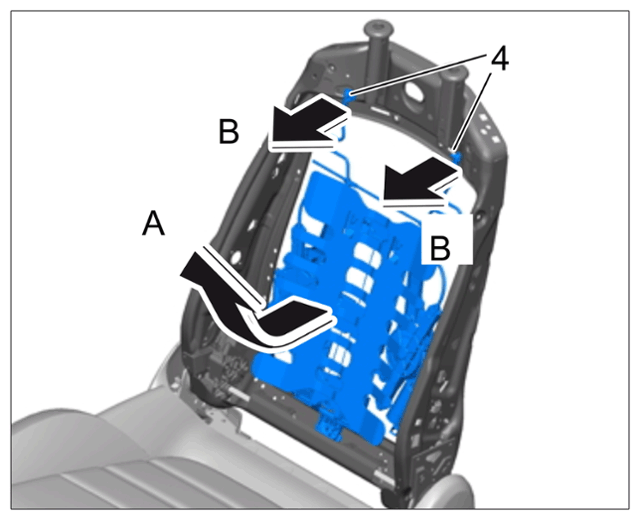

    G15161555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lumbar support

  4. Remove the complete lumbar support from the backrest frame.
