Installing Lumbar Support

  1. Press the retaining bars -4-  together and engage them in the backrest frame -arrow A-  .

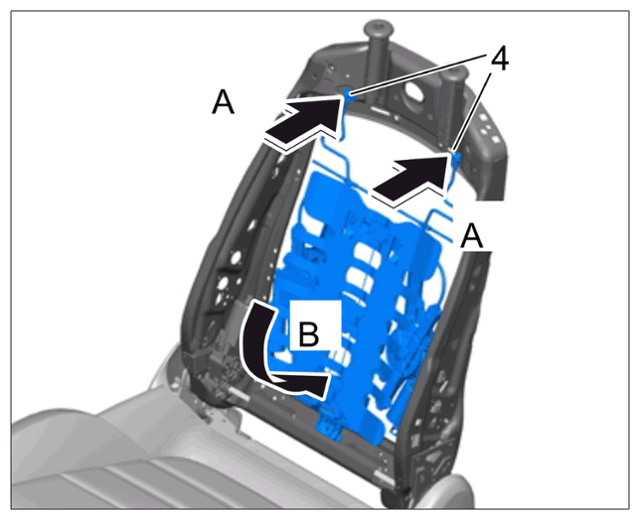

    G15161556Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lumbar support

  2. Fold down lumbar support -arrow B-  .
  3. Join the lumbar support and backrest frame using a new blind rivet -3-  .

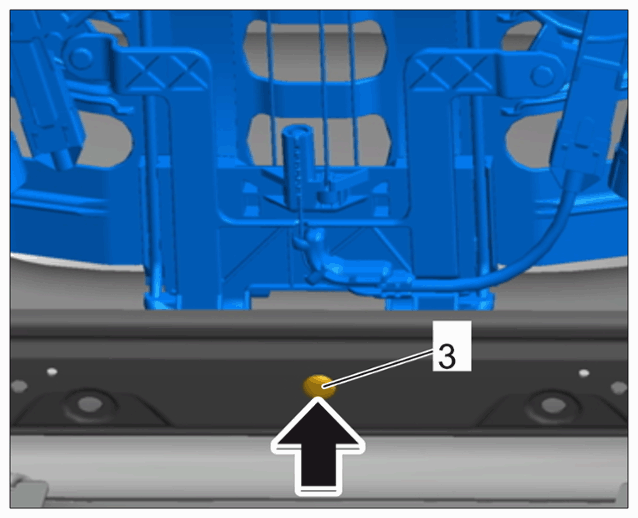

    G15161557Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lumbar support with backrest frame

  4. Plug in electric plug connections for lumbar support adjustment motor -1-  and lumbar curvature motor -2- (-Arrows-)  until they engage securely.

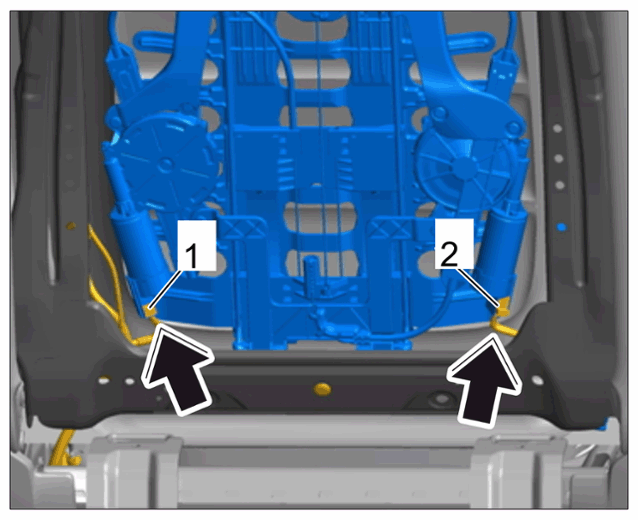

    G15161558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connectors for lumbar motors
