Removing Rear Cover For Backrest

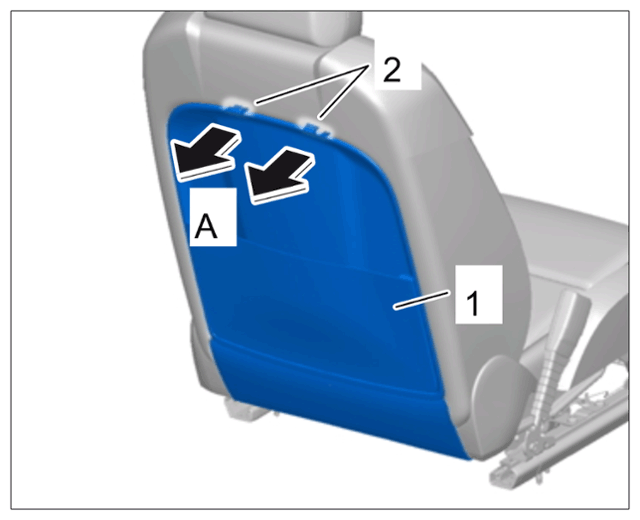

  1. Loosen the two top fixing clips -2-  on the rear cover for backrest -1- (-arrows A-)  .
    G15161546Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover for backrest

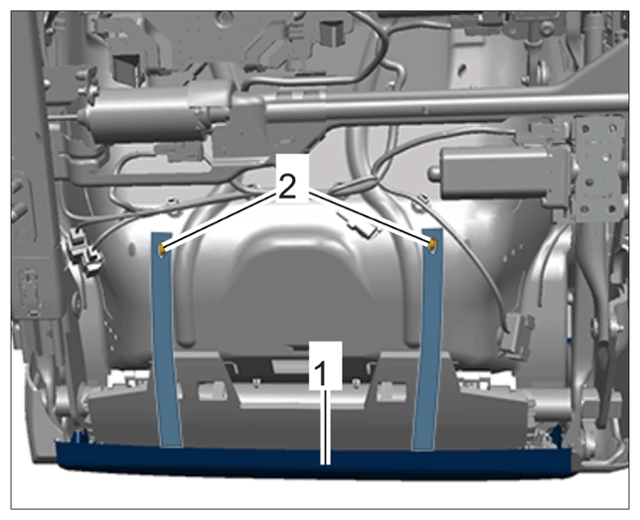

  2. Disengage rear cover for backrest -1-  on the underside of the front seat -2-  .
    G15161547Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover for backrest

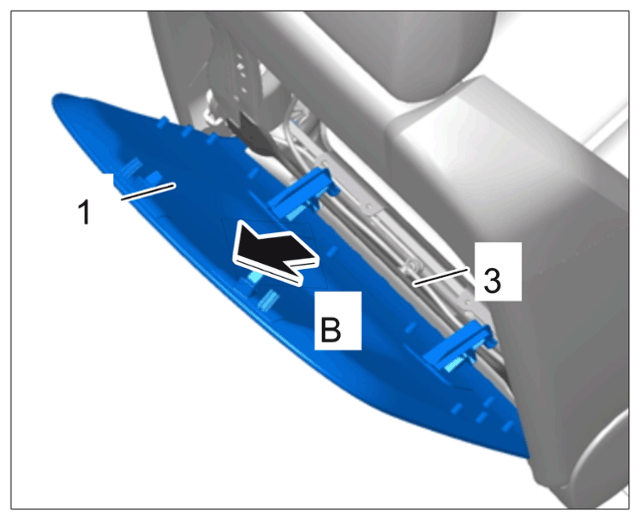

  3. Pull rear cover for backrest -1-  up out of the bracket -3- (-arrow B-)  .
    G15161548Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover for backrest
