WM, 721719 - Removing And Installing Air Cushion For Backrest
>>
Technical Values
Technical Values
Location
Desc...
Type
Basic value
Tolerance 1
Tolerance 2
Screw securing holder for air cushion to backrest
Item 1
Tightening torque
2.5 Nm (1.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

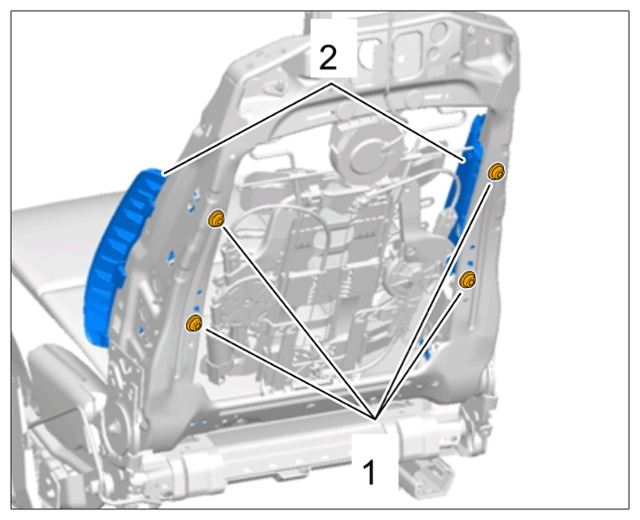

Air cushion for backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
