Removing Air Cushion For Backrest

  1. Open connection point on the air cushion -3-  and cut tie-wrap -1-  on the pressure line -2-  .

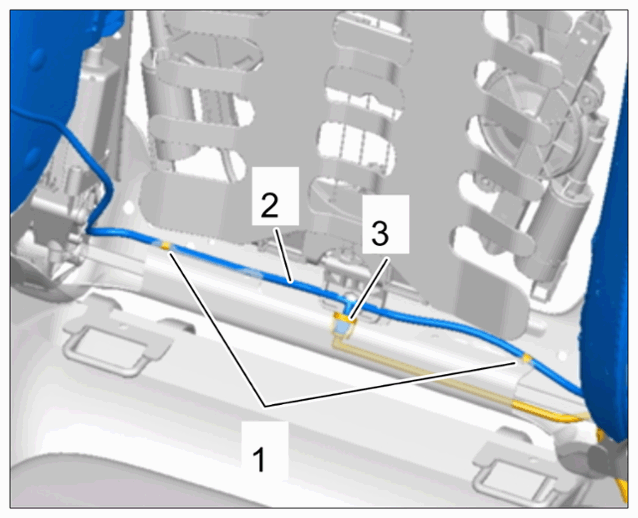

    G15161523Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure line

  2. Loosen fastening screws -1-  on holder for air cushion for backrest -2-  .

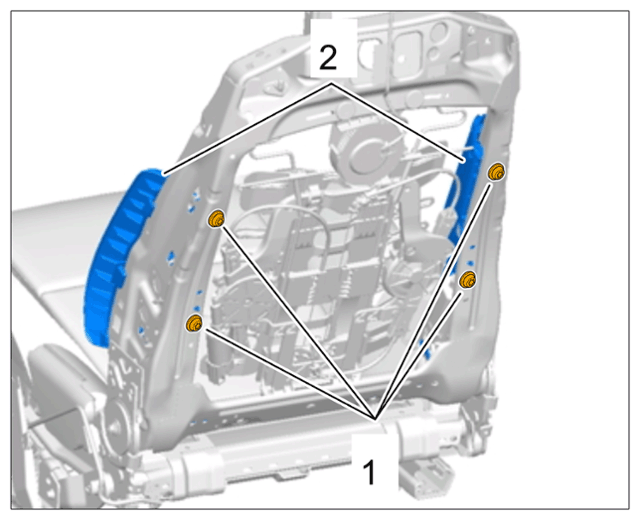

    G15161524Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cushion for backrest

  3. On the left side, release locking mechanisms -2-  on the control valve -1- (-A-)  and remove control valve -B-  .

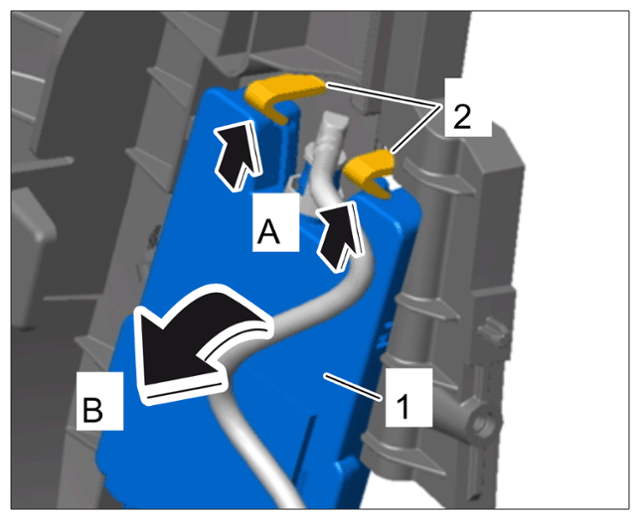

    G15161525Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control valve

  4. Remove air cushion for backrest.
