Installing Air Cushion For Backrest

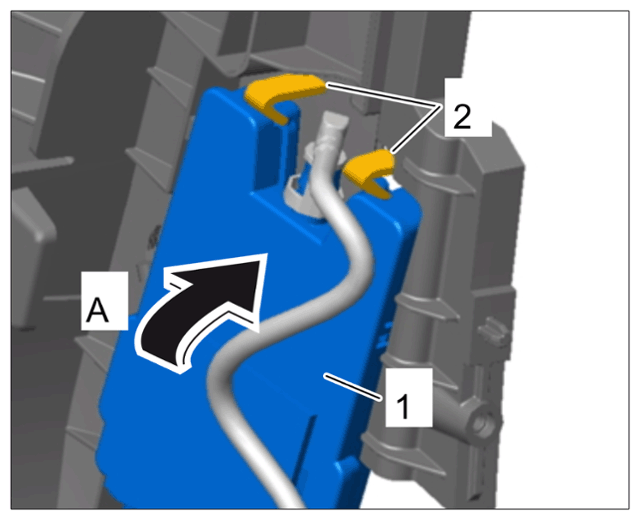

  1. On the left side, fit the control valve -1- (-A-)  and engage it in the locking mechanisms -2-  .
    G15161526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control valve

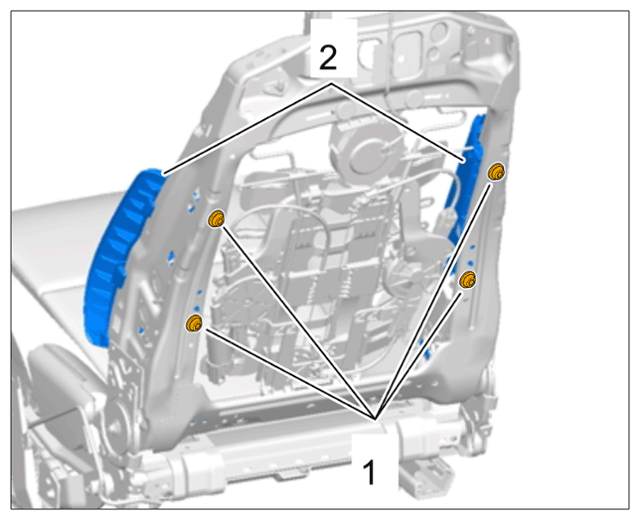

  2. Position holder for air cushion for backrest -2-  and tighten the fastening screws > Tightening - torque 2.5 Nm (1.9 ftlb.)
    G15161527Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cushion for backrest

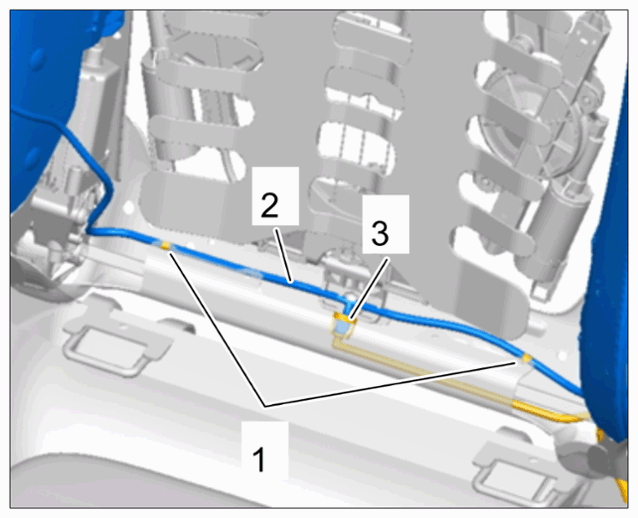

  3. Connect pressure line -2-  for air cushions at the connection point -3-  .
    G15161528Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air line

  4. Fit tie-wrap -1-  on the pressure line.
