72 Seat Frames -- 95B - MACAN (95B)
>>
WM, 721619 - Removing And Installing Trim Panel For Seat
>>
Technical Values
Technical Values
Location
Desc...
Type
Basic value
Tolerance 1
Tolerance 2
Screw for seat storage tray
Item 1
Tightening torque
7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

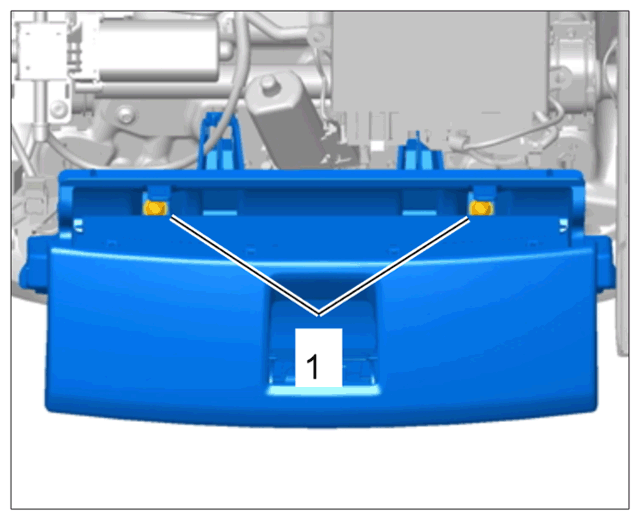

Storage tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
