Removing Air Cushion For Seat

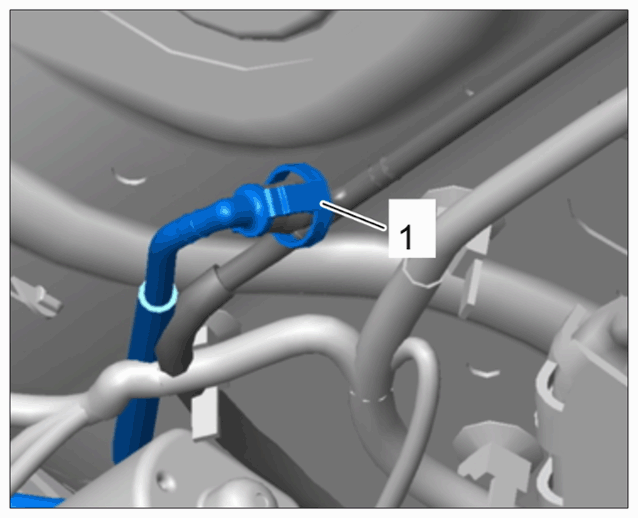

  1. Release and pull off the pressure line (red) -1-  under the seat.
    G15161501Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure line under seat

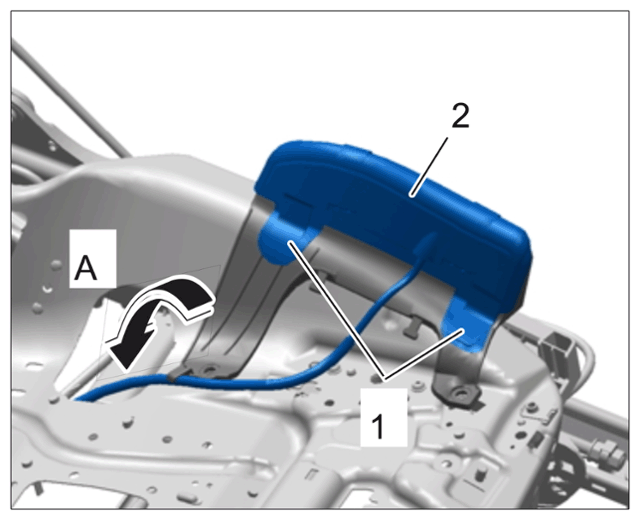

  2. Unclip fixing clips -1-  on both air cushions -2-  from the brackets.
    G15161502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cushion for seat

  3. Pull both air cushions -2-  through the cut-out in the seat frame -A-  .
