Installing Air Cushion For Seat

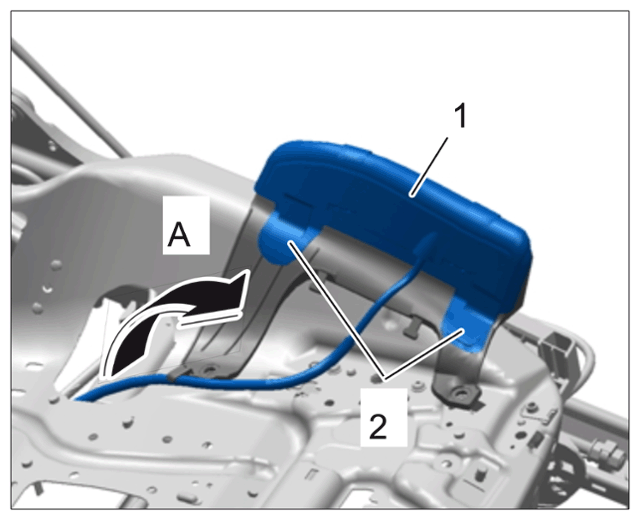

Pull both air cushions -1- up through the cut-outs in the seat frame from below -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for seat
Clip fixing clips -2- for both air cushions -1- into the brackets.
Fit the pressure line (red) -1- under the seat.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure line under seat
