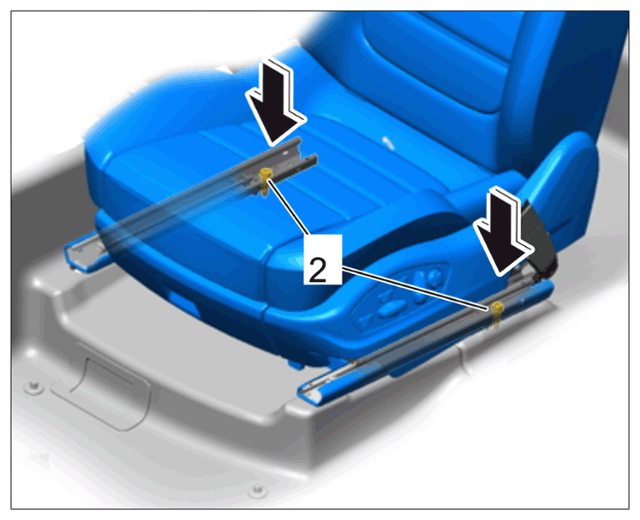

| Screws for front seat rail |
|
Tightening torque |
50 Nm (37 ftlb.) |
|
|
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
Front seat rail |
|
|
|
|
|

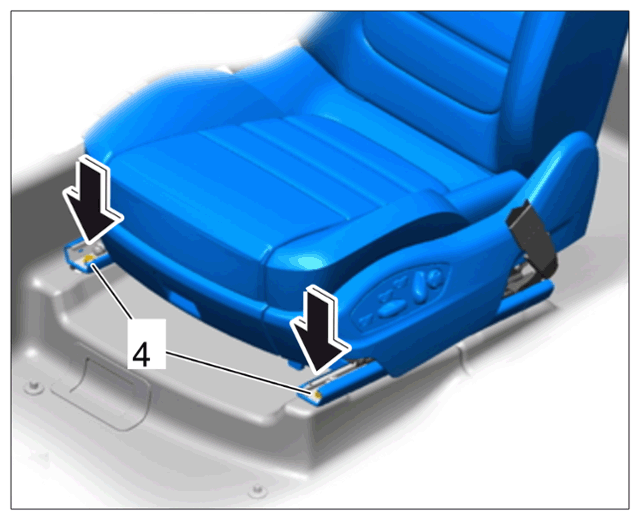

| Screws for rear seat rail |
|
Tightening torque |
50 Nm (37 ftlb.) |
|
|
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.
Front seat on seat frame at rear |
|
|
|
|
|
