Removing Cover For Side Loudspeaker

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove dashboard cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

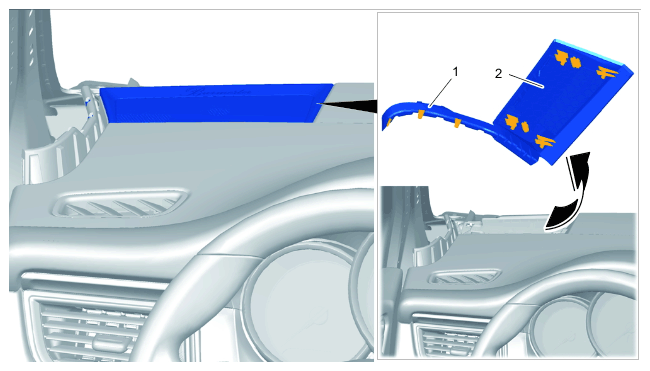

Cover for side loudspeaker

1. 1.1 Pull rubber moulding -1-  up out of the dashboard.
2. 1.2 Unclip and remove cover -2-  on dashboard.
