Removing Cover For Centre Loudspeaker

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove cover for centre loudspeaker.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

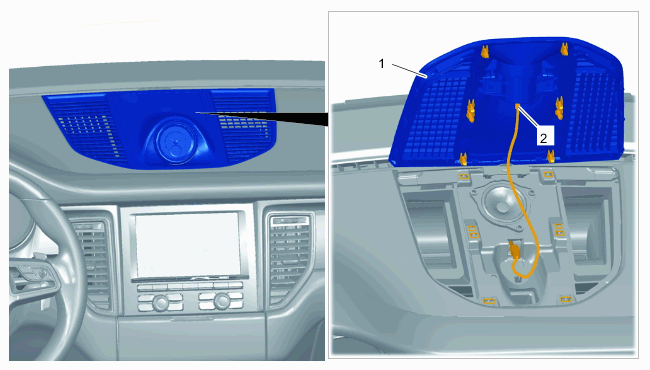

   Centre loudspeaker cover

   1. 1.1 Unclip cover for centre loudspeaker -1-  at the dashboard.
   2. 1.2 Lift up cover for centre loudspeaker -1-  and release and disconnect electric plug connection -2-  on stopwatch or compass.
2. Remove the cover -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre loudspeaker cover
