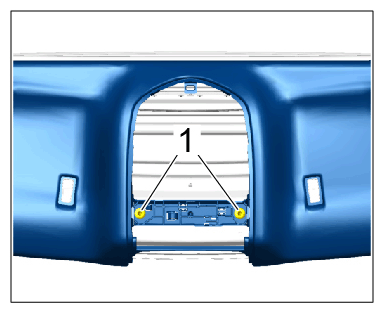

| Screws under roof console to roof trim panel |
|
Tightening torque |
5 Nm (3.7 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front roof trim panel |

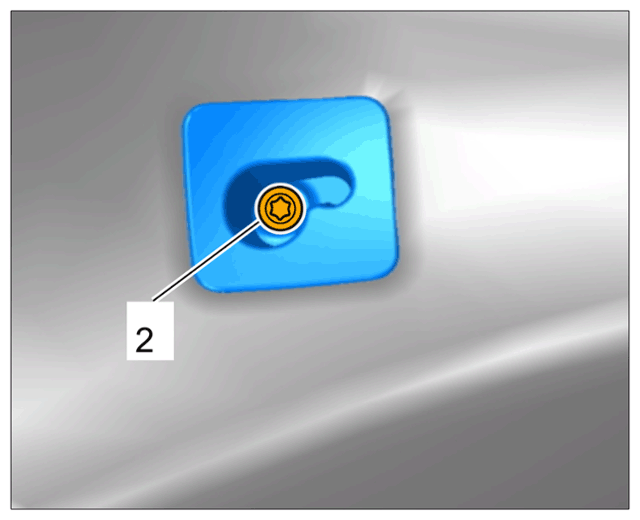

| Screw for luggage net cover holder to D-pillar |
|
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws securing holder for rear luggage net cover |
