Removing D-Pillar Trim Panel

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove D-pillar trim panel -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

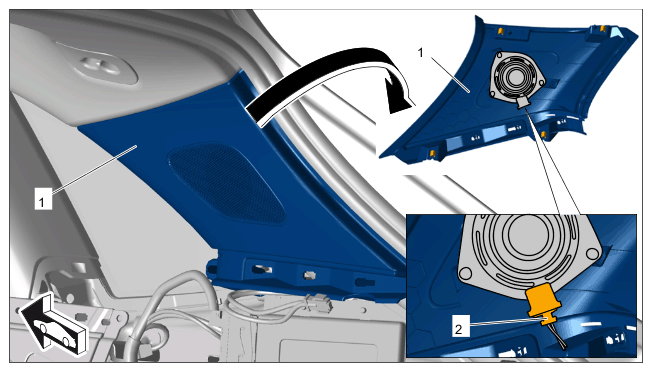

D-pillar trim panel

1. 1.1 Unclip D-pillar trim panel -1-  and remove it.
2. 1.2 Release and disconnect electric plug connection -2-  on the loudspeaker.
3. 1.3 Remove D-pillar trim panel -1-  .
