Removing C-Pillar Trim Panel

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Unscrew screws -1-  and remove belt guide clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

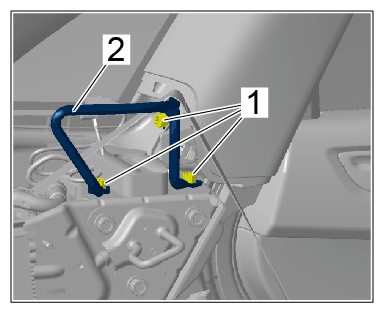

   Belt guide clips

2. Remove C-pillar trim panel -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

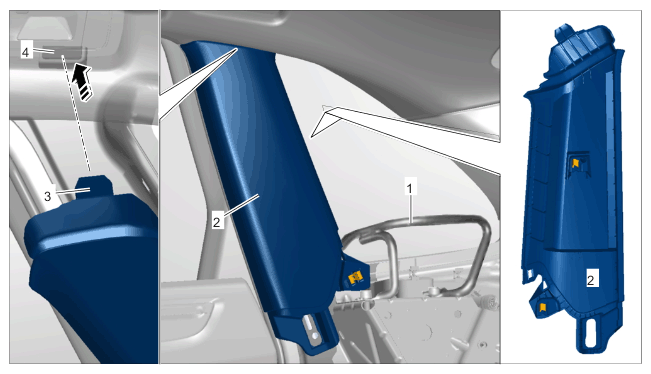

C-pillar trim panel

1. 2.1 Unclip C-pillar trim panel -2-  at the C-pillar.
2. 2.2 Guide tab -3-  out of the mounting -4-  and remove C-pillar trim panel -2-  .
