Removing Front Door Panel

  1. Unclip cover on door opener -1-  using a suitable tool.
    G15161394Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover on door opener

  2. Unclip light in door panel -1-  using a suitable tool and release and disconnect electric plug connection -Arrow-  .

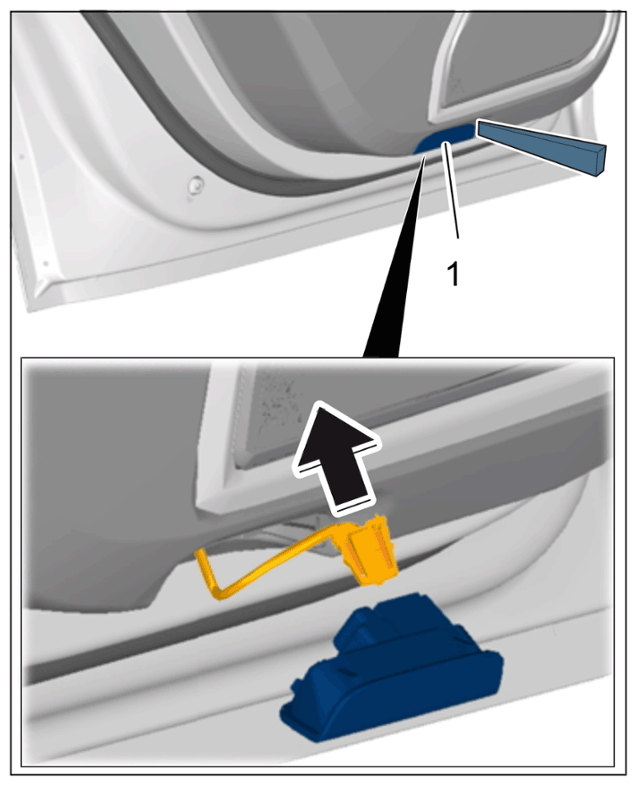

    G15161395Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Light in door panel

  3. Unscrew screws on door panel -1-  .

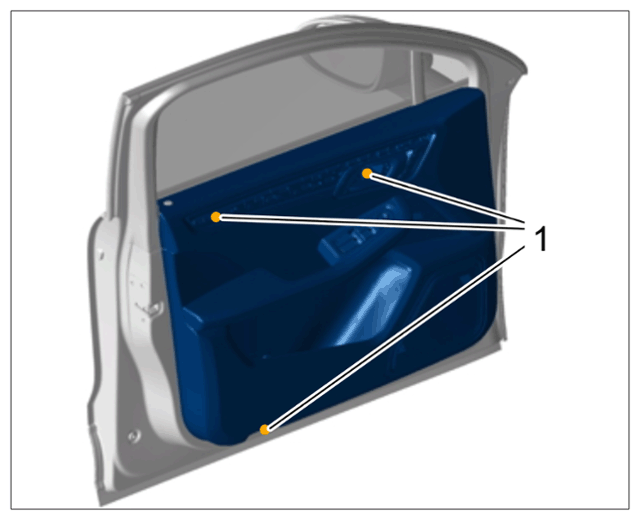

    G15161396Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on door panel

  4. Guide door panel up out of the bracket and swivel it to the rear.
  5. Disengage operating cable for door opener.

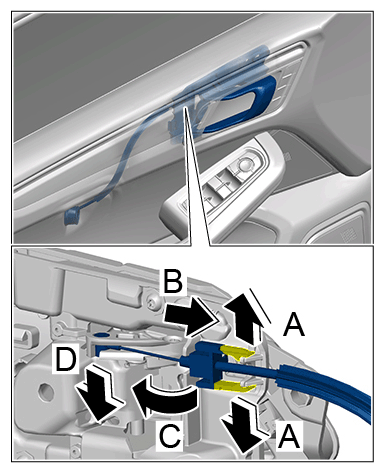

    G15161397Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Operating cable

    1. 5.1 Spread locking lugs outwards -arrow A-  .
    2. 5.2 Remove operating cable by pulling it to the rear out of the guide -arrow B-  .
    3. 5.3 Swivel operating cable in direction of arrow -arrow C-  until the driver at the front is free.
    4. 5.4 Remove driver from the door opener -arrow D-  .
  6. Release electric plug connection at the door control unit and pull it off.
  7. Release and disconnect electric plug connections for loudspeaker wire harness.
