Removing Dashboard Moulding On Driver Side (Left)

1. Cover steering-column switch and steering wheel with a protective mat.

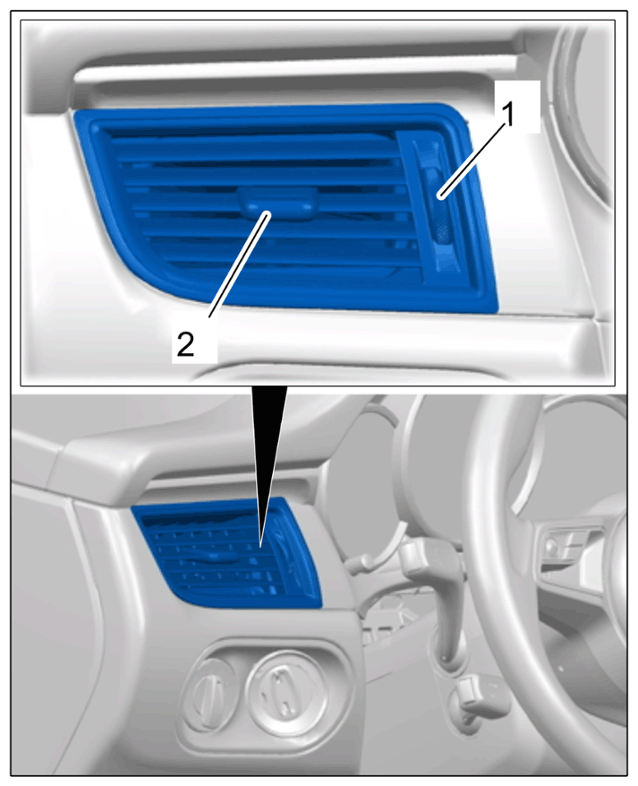

2. Open closing flap on the air nozzle using adjusting wheel -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Closing flap

3. Move vane tab -2-  to centre position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Closing flap

4. Loosen air nozzle with dashboard moulding on the driver side (left).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Puller hook

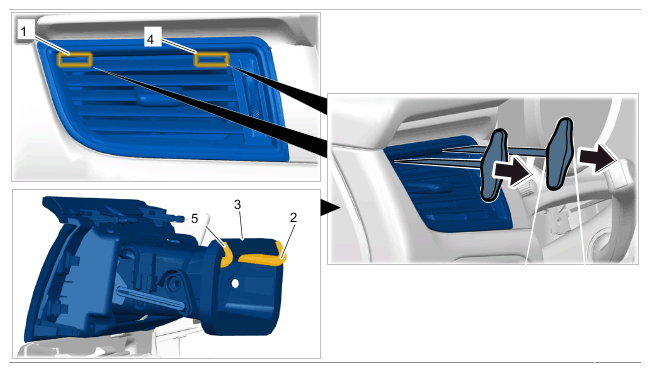

   1. 4.1 Guide puller hook in the upper area -1-  into the air vent and make sure that the hook -2-  engages securely in the housing -3-  .
   2. 4.2 Pull on the puller hook -Arrow-  until the air nozzle with the dashboard moulding on the driver side (left) disengages.
   3. 4.3 Guide puller hook in the upper area -4-  into the air vent and make sure that the hook -5-  engages securely in the housing -3-  .
   4. 4.4 Pull on the puller hook -Arrow-  until the air nozzle with the dashboard moulding on the driver side (left) disengages.
   5. 4.5 Remove air nozzle with dashboard moulding on the driver side (left).
5. For vehicles with illuminated air nozzles:

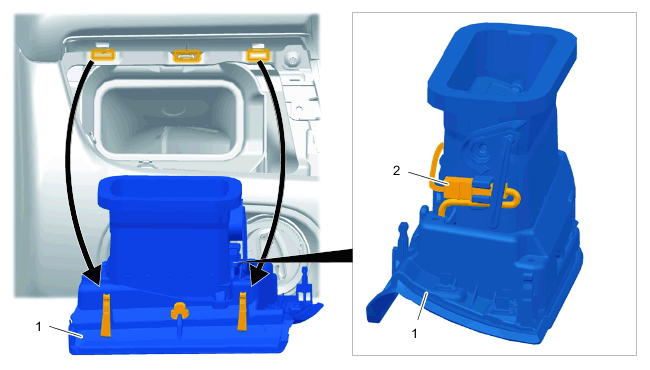

   Release and remove electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

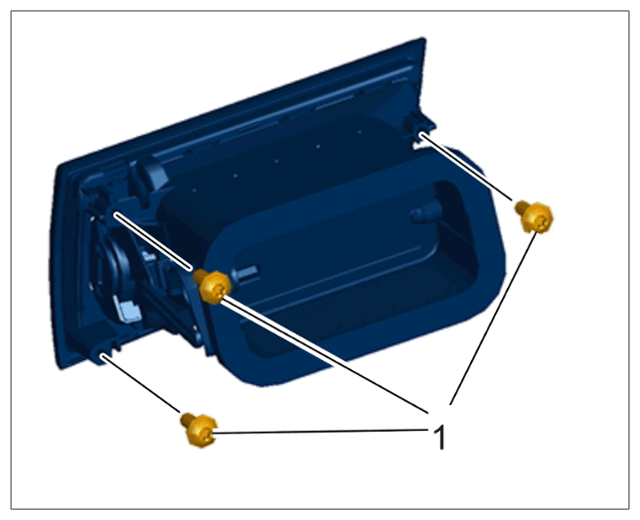

6. Unscrew screws -1-  and remove dashboard moulding on driver side (left) from the air nozzle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for air vent for left door window
