Home >> Porsche >> 2021 >> Macan Base >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior/Interior Trim >> 70 Linings, Insulation -- 95B - MACAN (95B) >> WM, 705819 Removing And Installing Dashboard Moulding On Passenger's Side >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing air vent on passenger's side to dashboard moulding on passenger's side Item 1 Tightening torque 1.2 Nm (0.75 ftlb.)

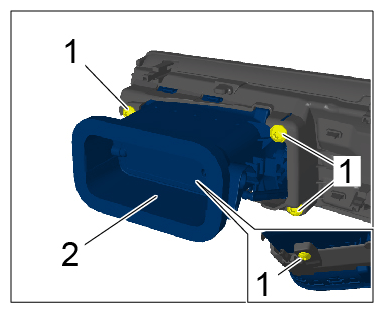

G15161380Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air vent on passenger's side
