Removing Dashboard Moulding On Passenger's Side

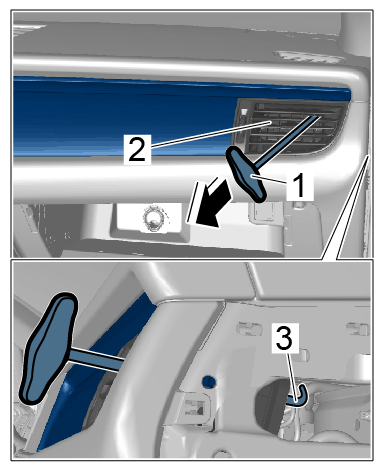

1. Open closing flap on air vent on passenger's side using adjusting wheel.
2. Insert puller -1-  > 3438 - hook  in the upper a rea of the air vent on passenger's side -2-  and make sure that the hook -3-  engages securely in the housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air vent on passenger's side

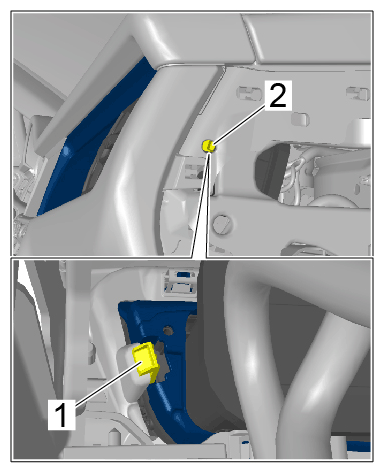

3. Keep the puller hook tensioned and release locking lug on air vent on passenger's side -1-  through the opening -2-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking lug on air vent on passenger's side

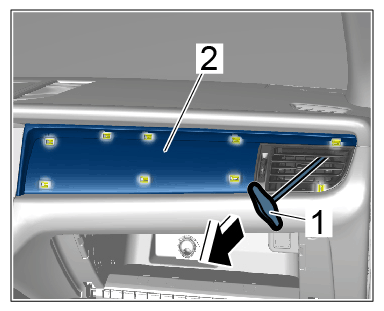

4. Pull on the puller hook -1-  until the air vent on passenger's side together with dashboard moulding -2-  on passenger's side disengages from the dashboard.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Dashboard moulding on passenger's side

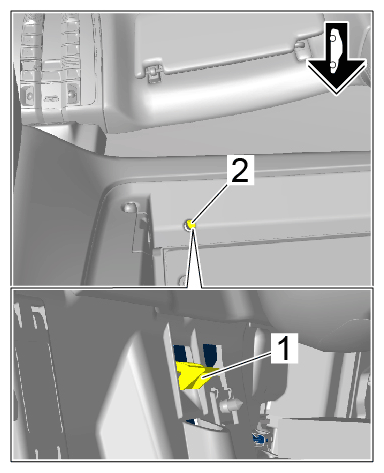

5. Keep dashboard moulding on passenger's side tensioned and release locking lug on the glove compartment -1-  through the opening -2-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking lug on glove compartment

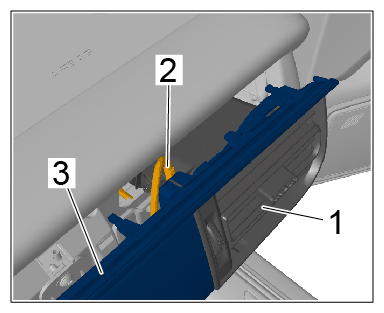

6. For vehicles with illuminated air vents -1- :

   Release electric plug connection -2-  and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

7. Remove dashboard moulding on -3-  passenger's side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Dashboard moulding on passenger's side

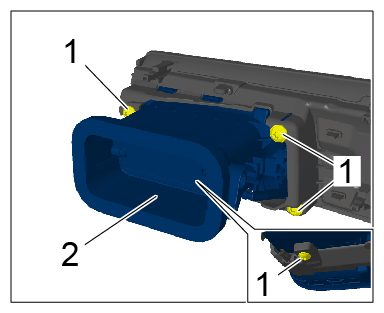

8. When replacing dashboard moulding on passenger's side:

Unscrew screws -1-  and remove air vent on passenger's side -2-  from dashboard moulding on passenger's side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air vent on passenger's side
