Installing Dashboard Moulding On Passenger's Side

Information

Check clips. They must not be bent or broken.

Make sure that all locking lugs have engaged correctly.

Check that they are fitted correctly.

  1. Installation is performed in reverse order. Pay particular attention to the following:

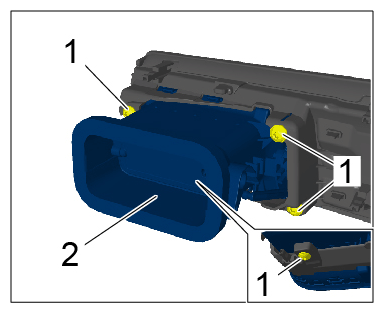

Tighten screws -1-  to > Tightening - torque 1.2 Nm (0.75 ftlb.)  .

G15161390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air vent on passenger's side
