Removing Footrest

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove footrest -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

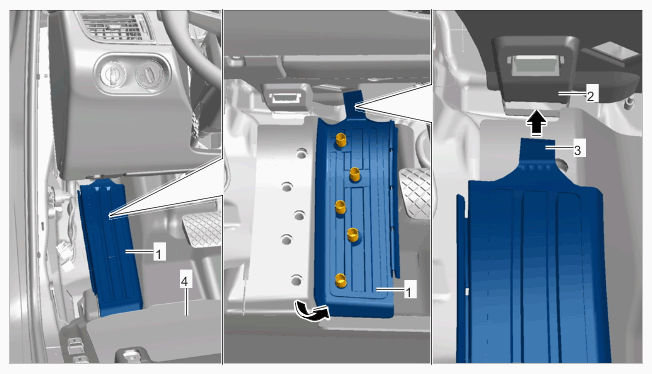

Footrest

1. 1.1 Remove floor mat -4-  .
2. 1.2 Unclip footrest -1-  at the carpet.
3. 1.3 Guide tab -3-  out of the trim panel under the dashboard -2-  (-Arrow-  ).
4. 1.4 Remove footrest -1-  .
