Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing trim panel under dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)

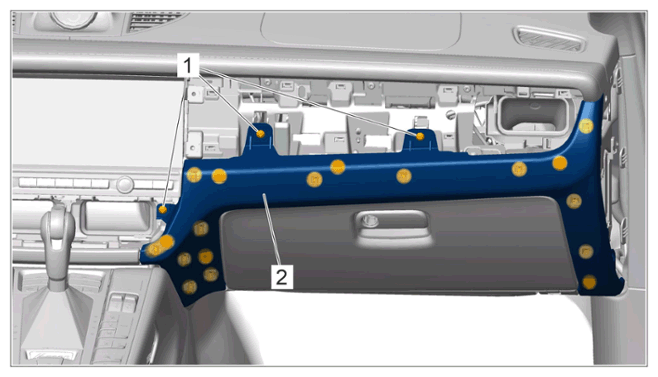

G15161343Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel under dashboard on passenger's side
