Removing Trim Panel Under Dashboard On Passenger's Side

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove trim panel under dashboard on passenger's side -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

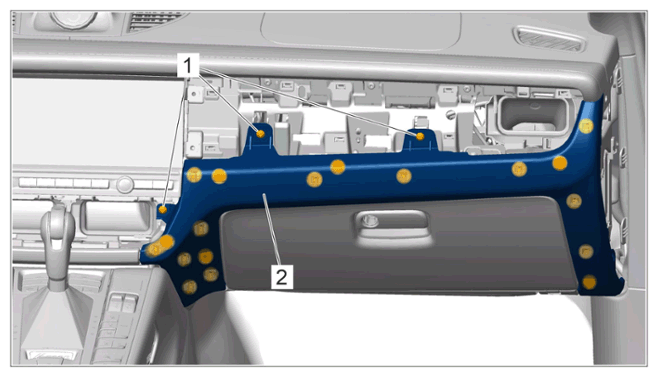

Trim panel under dashboard on passenger's side

1. 1.1 Unscrew and remove screws -1-  .
2. 1.2 Unclip trim panel under dashboard on passenger's side -2-  and remove it.
