Removing Dashboard Trim Panel

1. Remove dashboard trim panel -1-  from the dashboard.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

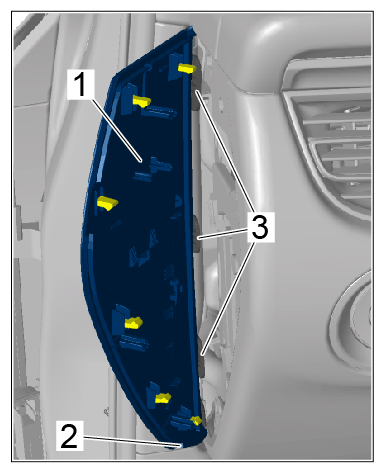

Dashboard trim panel

1. 1.1 Position a suitable tool at the cut-out -2-  between the dashboard trim panel -1-  and dashboard.
2. 1.2 Unclip dashboard trim panel -1-  near the fixing clips on the dashboard.
3. 1.3 Remove dashboard trim panel -1-  from the brackets -3-  for the side-section trim panel at the front.
