Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing lashing point to body Item 1 Tightening torque 8 Nm (6 ftlb.)

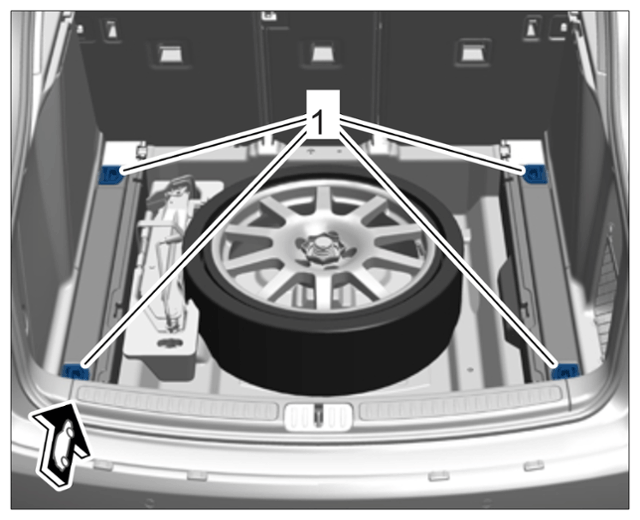

G15161310Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lashing points
