Removing Trim Panel For Luggage Compartment (Luggage Compartment Cover) At The Sides

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Fold up the tabs at the lashing points and unscrew screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

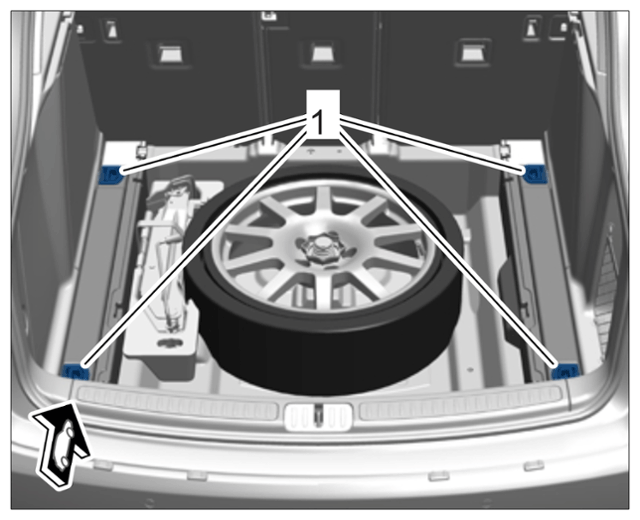

   Lashing points

2. Remove lashing points by pulling them up.
3. Remove luggage compartment trim panel (luggage compartment cover) at the sides -1-  by pulling it up out of the bracket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

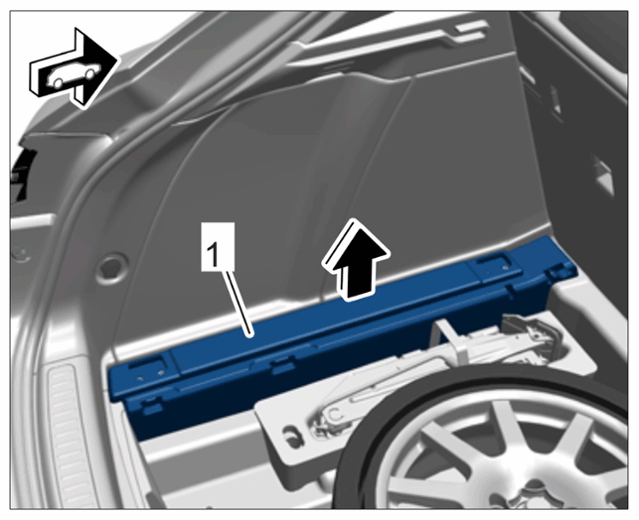

Luggage compartment trim panel (luggage compartment cover) at the sides
