Removing Oddments Tray Cover
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
- Some steps must be carried out automatically.
- Some of the repair illustrations show only one side of the vehicle.
- Loosen mounting for oddments tray cover.

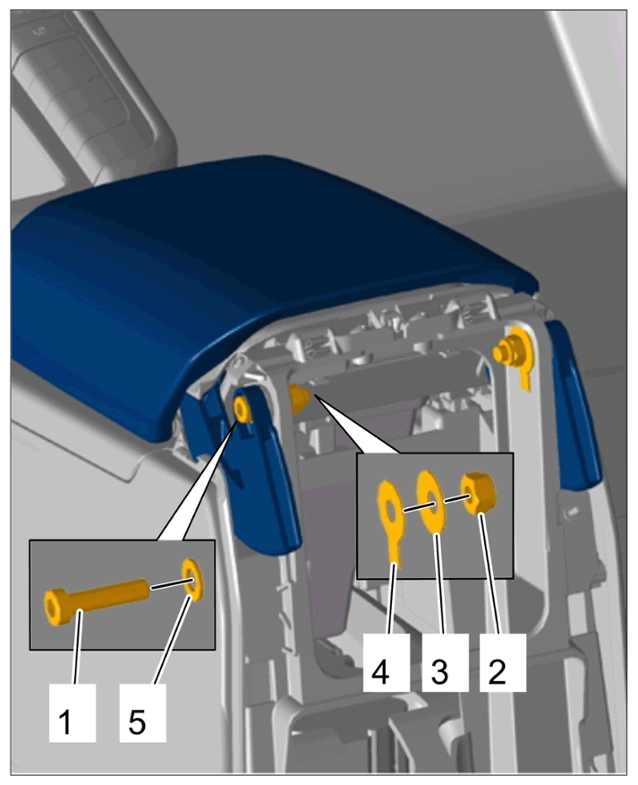

Mounting for oddments tray cover
- 1.1 Counter at screw "-1-" and unscrew nut "-2-".
- 1.2 Remove washer "-3-".
- 1.3 Remove plastic washer "-4-".
- 1.4 Pull out screw "-1-".
- 1.5 Remove washer "-5-".
- Remove oddments tray cover "-1-"

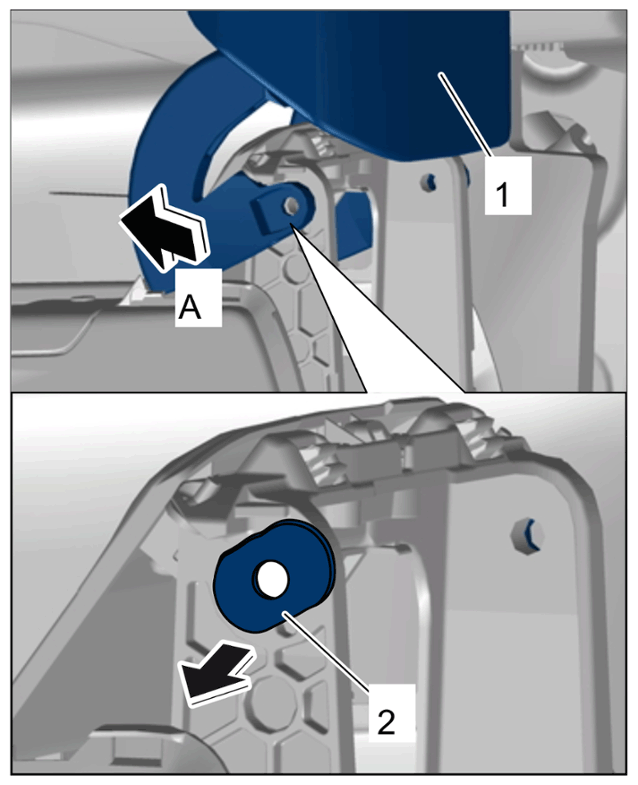

Oddments tray cover
- 2.1 Open oddments tray cover "-1-" and remove it from the centre console "-arrow A-".
- 2.2 Remove plastic guide pads "-2-" ("-Arrow-").
