Installing Oddments Tray Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Storage compartment cover

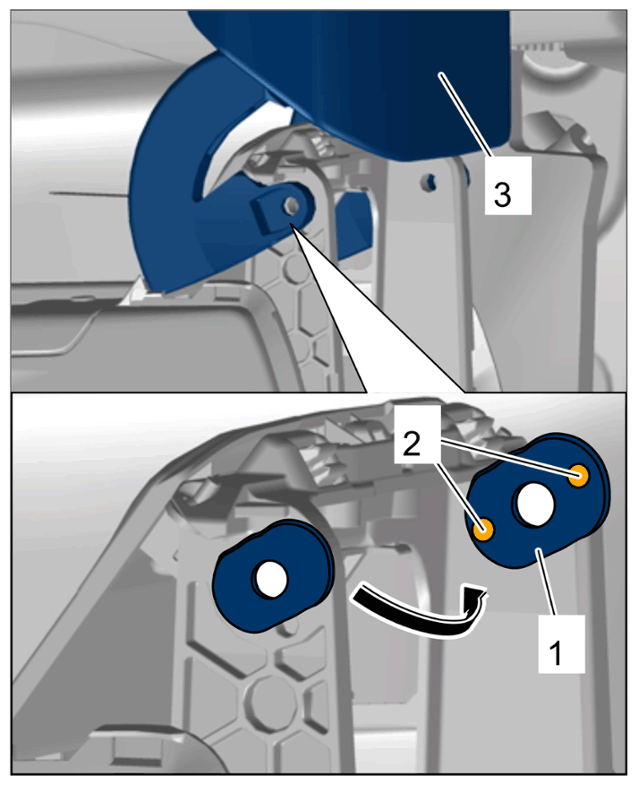

1. 1.1  Position and secure plastic guide pads "-1-" with centring devices "-2-" on the centre console.
2. 1.2  Fit oddments tray cover "-3-" on centre console.

Counter at the screw and tighten nut to > "Tightening torque 4 Nm (3 ftlb.)".
