Removing Rear Handle

  1. Remove rear grab handle "-3-".

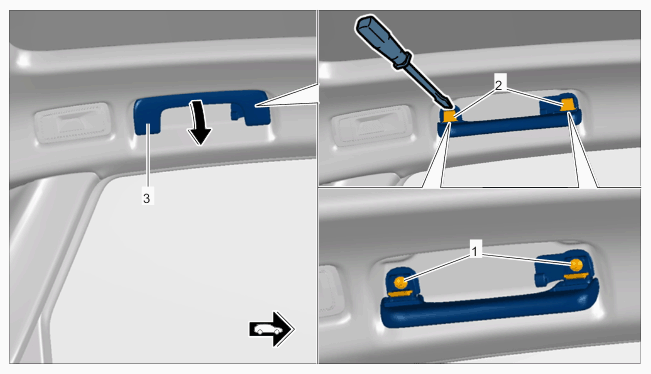

    G15160607Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear grab handle

    1. 1.1  Swivel rear grab handle "-3-" downwards and hold it securely.
    2. 1.2  Unclip covers "-2-" in the upper area and swivel them downwards.
    3. 1.3  Unscrew screws "-1-" and remove rear grab handle "-3-".
