Removing Front Handle

  1. Remove front handle "-3-".
    1. 1.1  Swivel front handle "-3-" down and hold it securely.
    2. 1.2  Unclip covers "-2-" in the upper area and swivel them downwards.
    3. 1.3  Unscrew screws "-1-" and remove front handle "-3-".

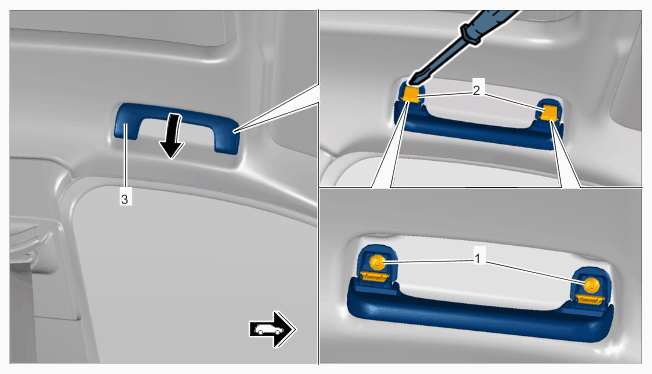

      G15160603Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front handle
