Removing Rear Ashtray

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove rear ashtray "-1-".

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

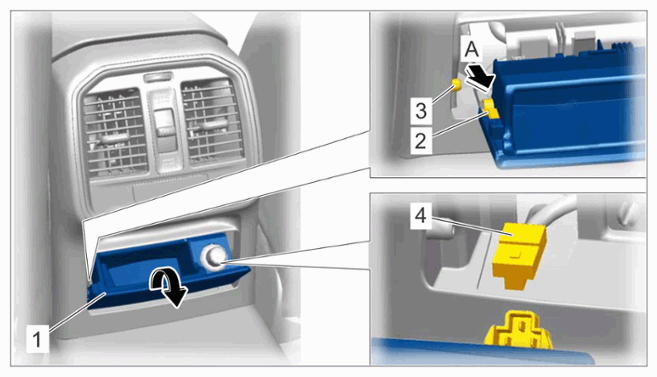

   Rear ashtray

   1. 1.1  Open rear ashtray "-1-".
   2. 1.2  Fold rear ashtray "-1-" down completely.
   3. 1.3  Unclip clip "-2-" by pulling it forwards out of the bracket "-3-" ("-arrow A-").
   4. 1.4  Release and disconnect electric plug connection "-4-".
   5. 1.5  Remove rear ashtray "-1-".
