Removing Centre Console Trim

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Move front seats to the rearmost position.

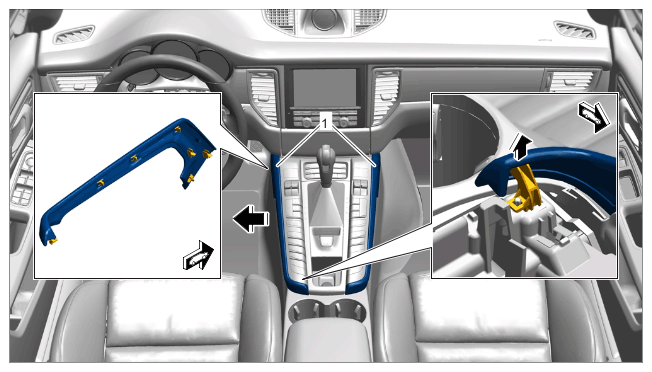

2. Remove centre console trim "-1-".

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre console trim

   1. 2.1  Pull up centre console trim "-1-" in the rear area "-Arrow-" and unclip it from the centre console.
   2. 2.2  Unclip centre console trim "-1-" at the sides of the centre console "-Arrow-" and remove it.
