Removing Glove Compartment Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

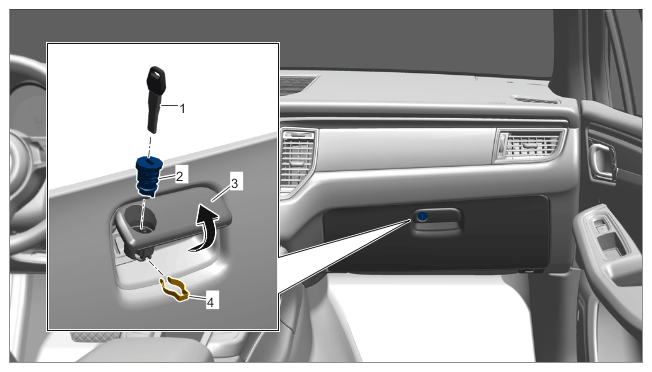

Glove compartment lock

1. 1.1  Move passenger seat to the rearmost position.
2. 1.2  Remove key bit "-1-" from the transmitter key and insert it into the lock cylinder "-2-".
3. 1.3  Press and hold the release handle "-3-".
4. 1.4  Pull out safety clip "-4-".
5. 1.5  Remove lock cylinder "-2-" by pulling it forward.
