Disassembling Rear-View Mirror

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove mirror glass.
   • WM, 667819 - REMOVING AND INSTALLING MIRROR GLASS
2. Remove rear-view mirror housing (upper part).
   • WM, 66791901 - REMOVING AND INSTALLING REAR-VIEW MIRROR HOUSING (UPPER PART)
3. Remove mirror adjusting motor (mirror glass).
   • WM, 668219 - REMOVING AND INSTALLING MIRROR ADJUSTING MOTOR (MIRROR GLASS)
4. Remove rear-view mirror housing (lower part).
   • WM, 66791903 - REMOVING AND INSTALLING REAR-VIEW MIRROR HOUSING (LOWER PART)
5. Remove mirror adjusting motor (folding function).
   • WM, 668219 - REMOVING AND INSTALLING MIRROR ADJUSTING MOTOR (MIRROR GLASS)
6. For vehicles with standard mirror base:

   Remove mirror base cover.

   • WM, 66791901 - REMOVING AND INSTALLING REAR-VIEW MIRROR HOUSING (UPPER PART)
7. For vehicles with V-shaped mirror base:

   Remove cover on V-shaped mirror base.

   • WM, 66791901 - REMOVING AND INSTALLING REAR-VIEW MIRROR HOUSING (UPPER PART)

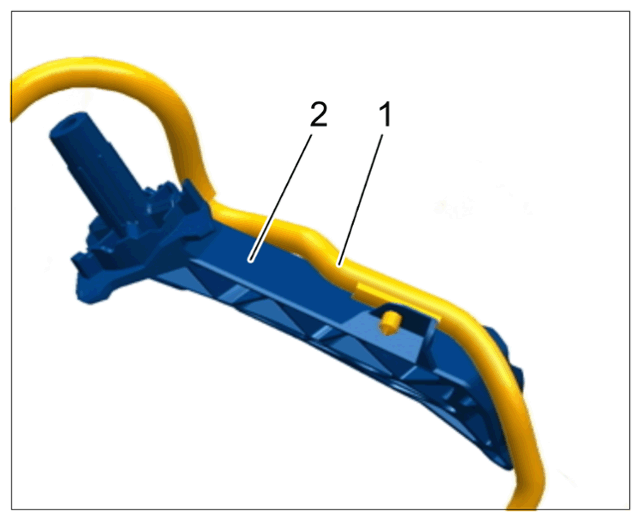

8. Unclip wire harness for rear-view mirror -1-  at the mirror base -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for rear-view mirror
