Removing Trim Frame For Side Window

  1. Bend tabs -1-  using a suitable tool.
    G15160412Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tabs

  2. Removing trim frame for side window -1-

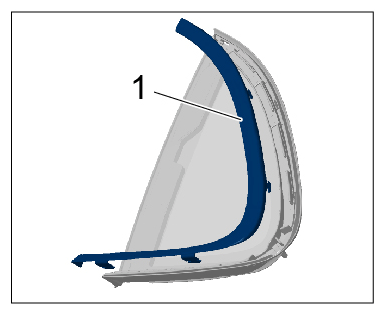

    G15160413Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim frame for side window
