Removing Side Step: Notes

Information

Cover add-on parts and adjacent areas.

Protect components against scratching and damage.

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

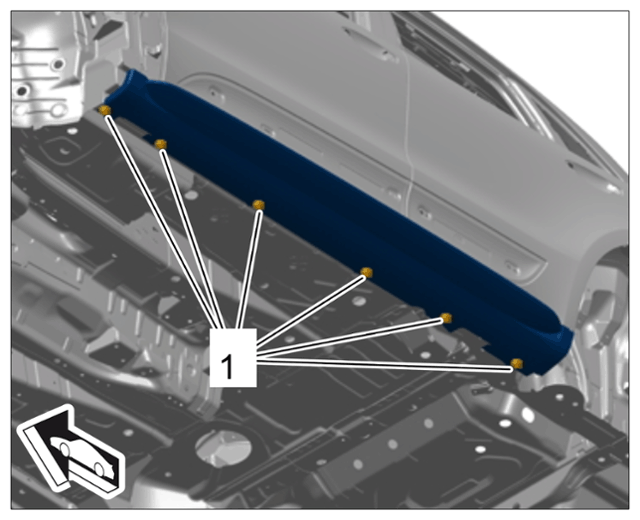

1. Unscrew screws -1-  securing bottom of side step to the underbody.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Side step

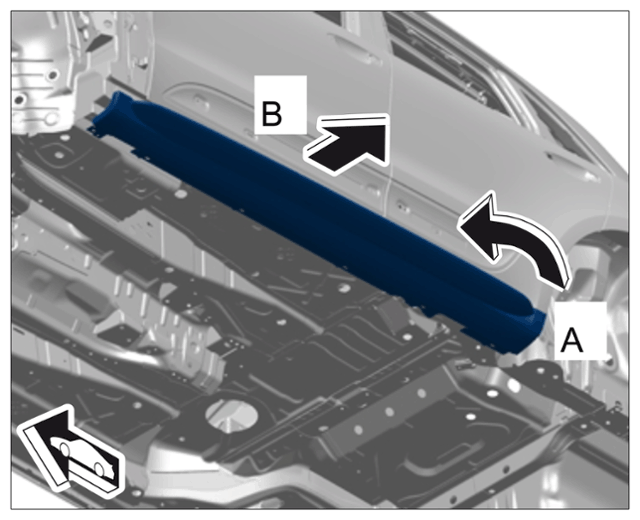

2. Unclip side step, starting from the rear -arrow A-  , using an assembly wedge and remove it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Side step
