Removing Spray Nozzle For Rear Window Washer

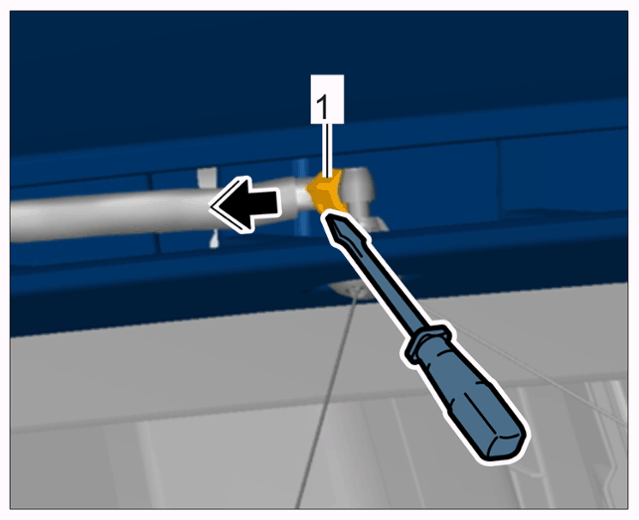

1. Release washer-fluid line spray nozzle using a suitable tool -1-  and pull it off -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Washer fluid line

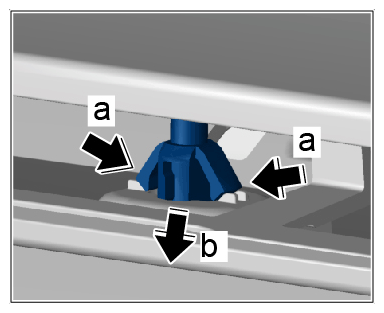

2. Release spray nozzle for rear window washer -arrows a-  and press it out downwards -arrow b-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spray nozzle for rear window washer
