Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing windscreen-washer reservoir to body Item 2 Tightening torque 7 Nm (5 ftlb.)
G15162560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Windscreen-washer reservoir
Fastening screw securing filler neck for windscreen washer system to body Item 2 Tightening torque 7 Nm (5 ftlb.)

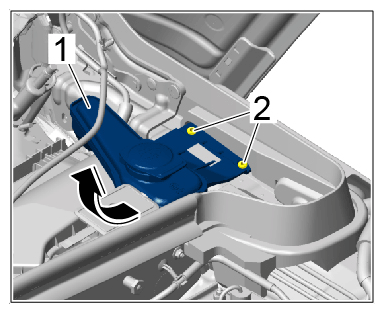

G15162562Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filler neck
