Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

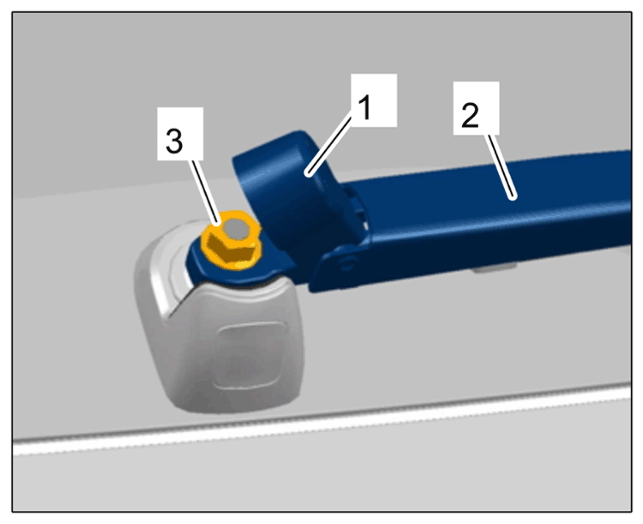

| Fastening nut securing wiper arm for rear window washer to wiper axle | Item 3 | Tightening torque | 15 Nm (11 ftlb.) | ||
|
Wiper arm for rear window washer |
|||||

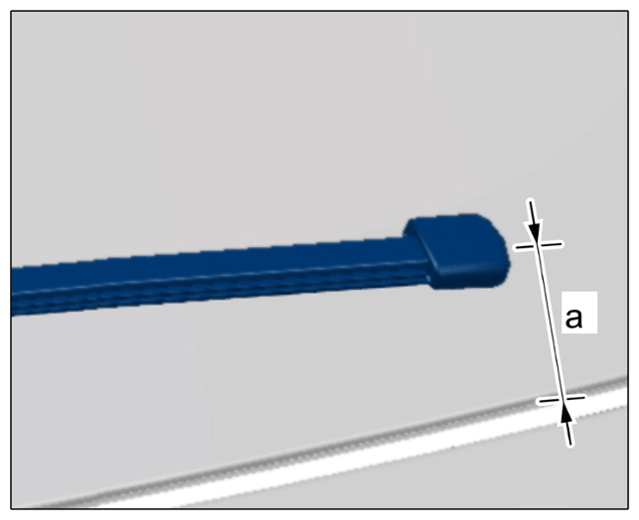

| Distance from centre wiper lip to lower edge of window | Dimension a | Required value | 25 mm | ||
|
Wiper arm for rear window washer |
|||||
