Removing Wiper Arm For Rear Window Washer

WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

    → Switch off electric power to drive motor.

    → Make sure it does not switch on again.

    → Check that there is no electric charge.

  1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).
  2. Lift up cover -1-  and pull it off the wiper arm for the rear window washer -2-  .
    G15162548Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiper arm for rear window washer

  3. Screw off fastening nut -3-  .
    G15162549Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiper arm for rear window washer

  4. Pull wiper arm for rear window washer -2-  off the wiper axle.

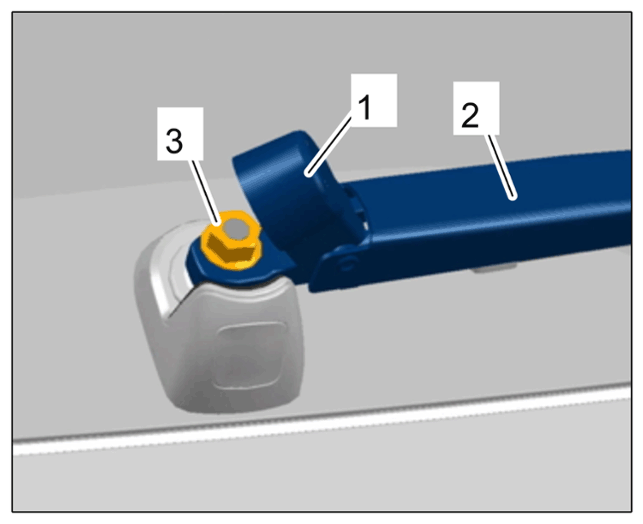

G15162550Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiper arm for rear window washer
