Installing Wiper Arm For Rear Window Washer

1. Switch wiper motor for rear window washer on and off and allow wiper motor for rear window washer to move to its end position.
   WARNING: Electrically moved components

   • Danger of limbs being trapped or severed

     → Switch off electric power to drive motor.

     → Make sure it does not switch on again.

     → Check that there is no electric charge.

2. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

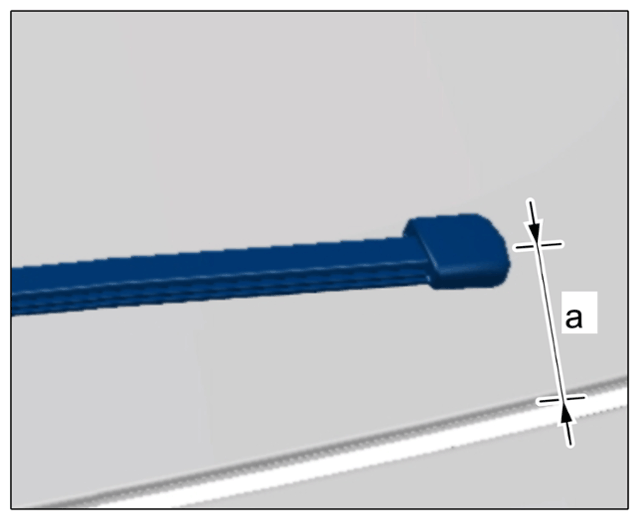

3. Fit wiper arm for rear window washer on the wiper axle so that dimension -a-  > Required value 25 mm  is set on the wiper blade.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiper arm for rear window washer

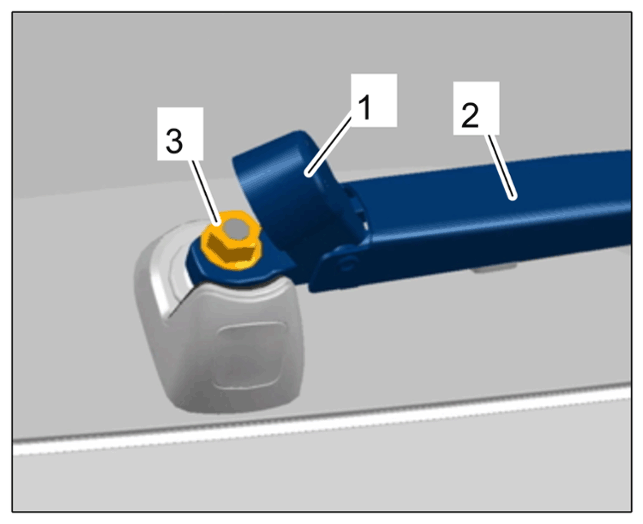

4. Tighten fastening nut -3-  to > Tightening - torque 15 Nm (11 ftlb.)  until secure.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiper arm for rear window washer

5. Fit cover -1-  on wiper arm for rear window washer -2-  until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiper arm for rear window washer
