Removing Wiper Blade
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.
→ Make sure it does not switch on again.
→ Check that there is no electric charge.
- Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

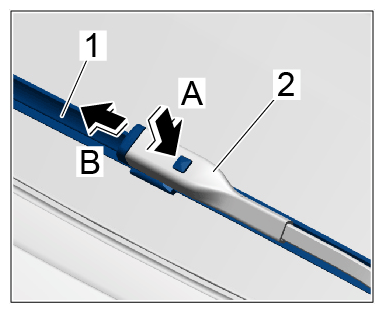

- Lift wiper arm -2- , release wiper blade -1-arrow A- and pull it out of the guide -arrow B- .
Wiper blade
