Removing Wiper Arm

Information

To counteract deformation of the wiper rubber that occurs when it is at rest, the wiper arm is alternately moved to two different parked positions.

Only remove and install the wiper arm in lower parked position.

Before removing or installing the wiper arm, actuate the wiper and make sure that the wiper arm moves to the lower parked position.

1. Move the windscreen wiper to its lower parked position using the one-touch wipe function.
2. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

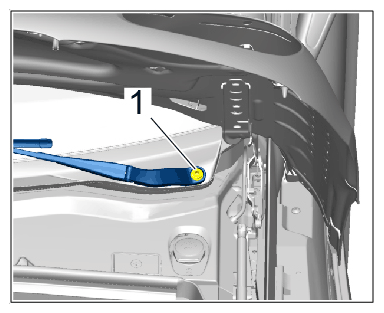

3. Lever off cap -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cap

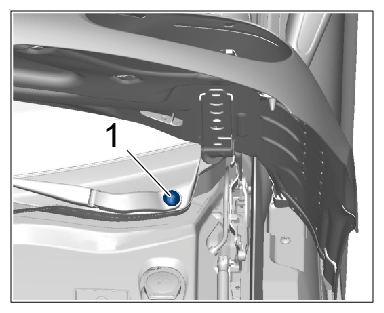

4. Loosen fastening nut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nut

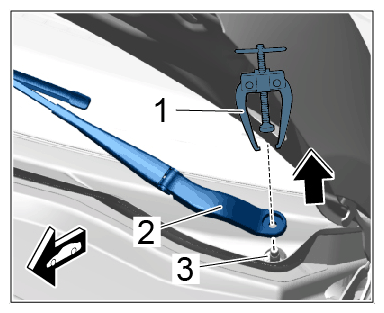

5. Detach wiper arm -2-  from the wiper linkage -3-  using > VAS 6935 - pole terminal puller-1-Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiper arm

6. > VAS 6935 - Pole terminal puller  must then be removed and screw off nut -1-  completely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nut

   Information

   Make sure not to damage the front lid when removing and installing the wiper arm. Close the front lid if necessary.

7. Remove the wiper arm.
