Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screws securing wiper motor to wiper linkage | Item 3 | Tightening torque | 12 Nm (9 ftlb.) | ||
|

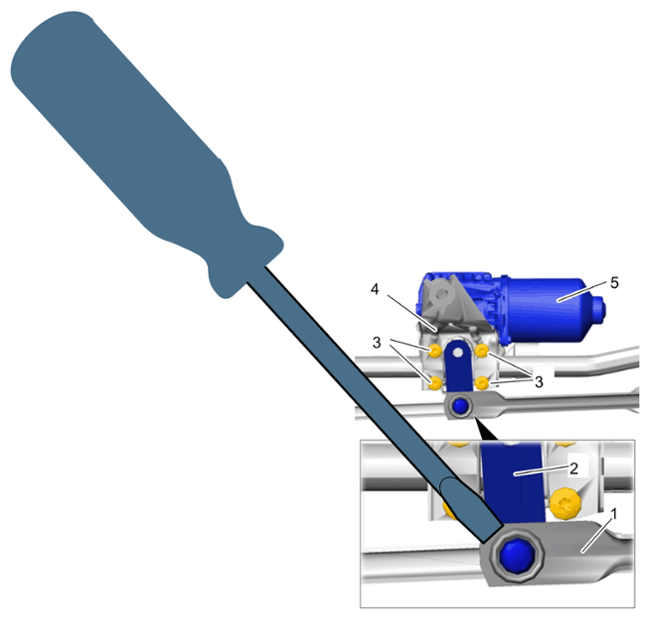

Wiper motor on wiper linkage |
|||||
| Fastening screws securing wiper linkage to body | Item 1, 2, 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
|

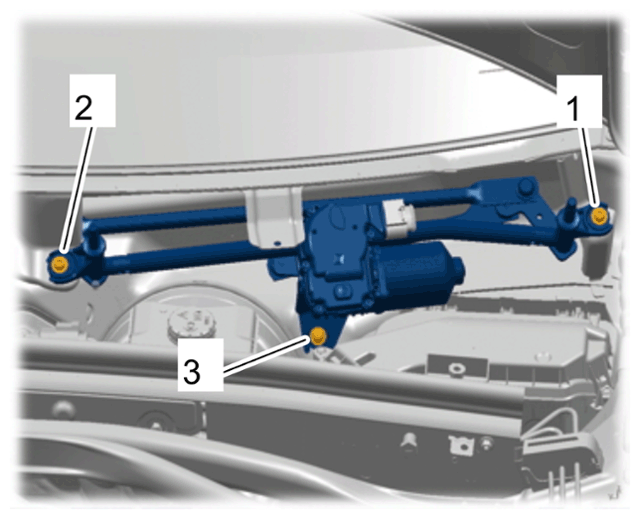

Wiper linkage mounting |
|||||
