Removing Wiper Linkage
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.
→ Make sure it does not switch on again.
→ Check that there is no electric charge.
- Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).
- Detach wiper motor -2-
.

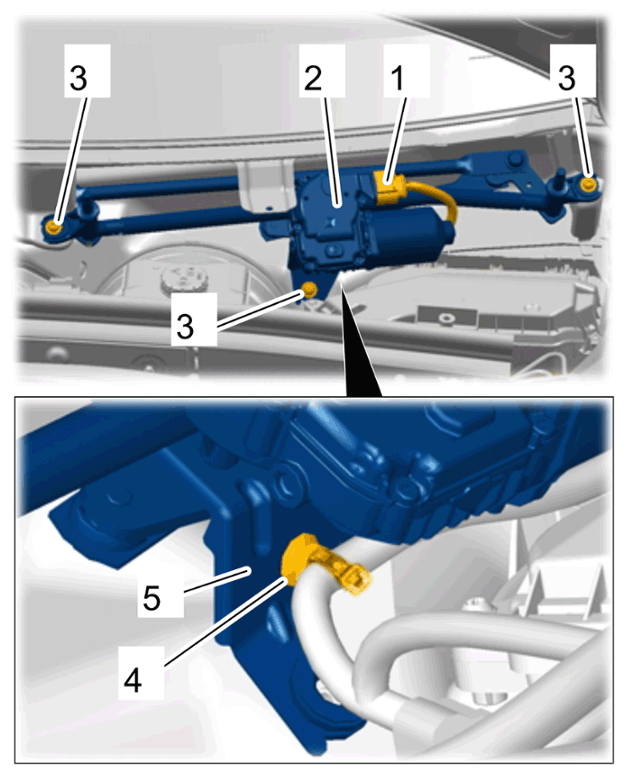

Wiper motor with wiper linkage
- 2.1 Release electric plug connection -1- and pull it off the wiper motor -2- .
- 2.2 Unscrew fastening screws -3- .
- 2.3 Unclip holder -4- for the electric line at the wiper motor holder -5- .
- Remove wiper motor with wiper linkage.

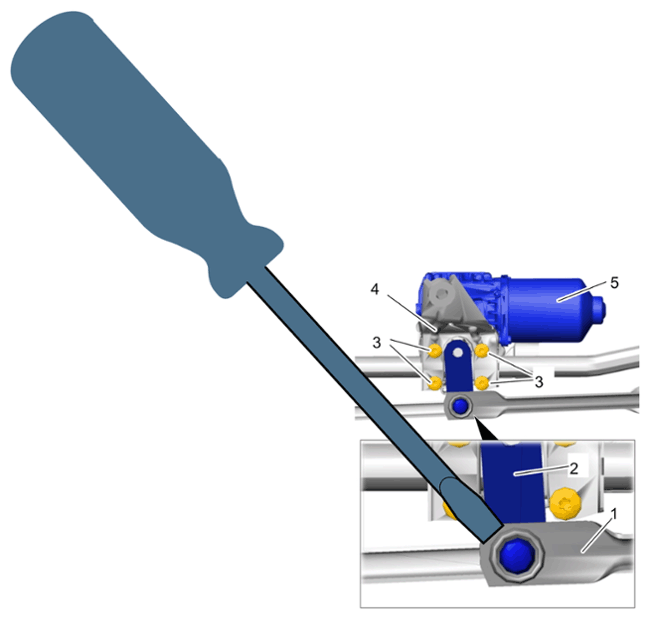

- Detach wiper linkage -1-
.
Wiper motor with wiper linkage
- 4.1 Prise wiper linkage -1- off the lever -2- for the wiper motor -5- .
- 4.2 Unscrew fastening screws -3- and remove holder -4- .
- Remove wiper linkage from wiper motor.
